Description

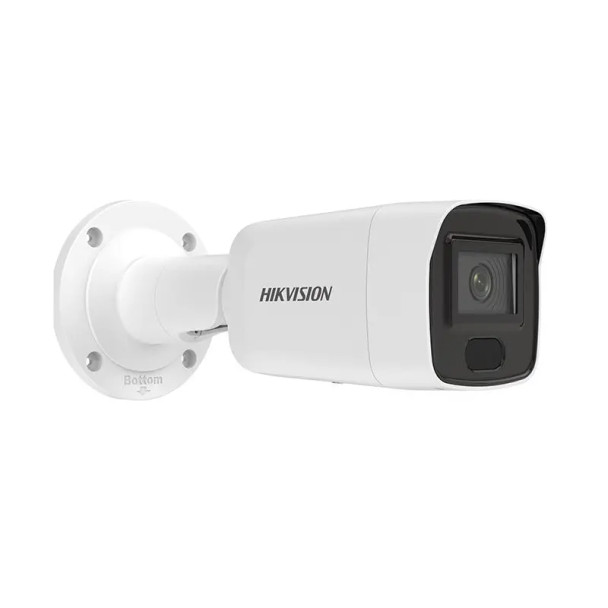

Hikvision PCI-B15F6S AcuSense 5 MP Outdoor IR Fixed Bullet Network Camera with 6mm Lens
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Key Features:
- Excellent low-light performance with Powered-by-DarkFighter technology
- High quality imaging with 5 MP resolution
- Lens Type & FOV: 6 mm, horizontal FOV 44°, vertical FOV 34°, diagonal FOV 54°
- Efficient H.265+ compression technology
- False alarm reduction through human and vehicle target classification based on deep learning
- IR Range: Up to 131 ft (40 m)
- Water and dust resistant (IP67)
Downloads
Datasheet
Hikvision-PCI-B15F6S-Datasheet-A1
Quick Start Guide
Hikvision-PCI-B15F6S-Quick-Start-Guide-A1
User Manual
Hikvision-PCI-B15F6S-User-Manual-A1
Firmware
Firmware:-G5_EN_STD_5.7.1_220607
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Aperture:
|
F1.4
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Camera Style:
|
Bullet
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
ISAPI
SDK
|
|
Compression:
|
H.264
H.265
MJPEG
H.265 Plus
H.264 Plus
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
413.38
164.04
82.02
39.37
413.3
|
|
Dimensions:
|
78.8 x 78.6 x 235.9 mm (3.1 x 3.1 x 9.3 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
44
|
|
Identify (ft):
|
39.37
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M12
|
|
Lens Size:
|
6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://us.hikvision.com/en
|
|
Max Power Consumption:
|
8.5 Watts
|
|
Max. FPS and Resolution:
|
20fps at 2592 x 1944
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 Lux at F1.4 AGC ON
|
|
Mounting:
|
Ceiling Mount
Wall Mount
|
|
Night Vision Range (ft):
|
131
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
164.04
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Hikvision AcuSense Series
|
|
Protection Code:
|
IP67
|
|
RAM:
|
512MB
|
|
Recognize (ft):
|
82.02
|
|
Reset Button:
|
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
Hikvision DarkFighter
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
