Description
Hikvision PCI-LB18F4S AcuSense 8MP IR Outdoor Bullet IP Security Camera, 4mm Fixed Lens, White
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Key Features:
- Excellent low-light performance with Powered-by-DarkFighter technology
- High quality imaging with 8 MP resolution
- Lens Type andFOV4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
- Efficient H.265+ compression technology
- False alarm reduction through human and vehicle target classification based on deep learning
- IR Range Up to 295 ft (90 m)
- Water and dust resistant (IP67)
- Clear imaging against strong backlight with 120 dB true WDR technology
- Advanced streaming technology that enables smooth live view and data self-correcting in poor network conditions
Downloads
User Manual
Hikvision-PCI-LB18F4S-User-Manual-A1
Datasheet
Hikvision-PCI-LB18F4S-Datasheet-A1
Firmware
Hikvision-PCI-LB18F4S-Firmware-A1
Popular Search
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Alternative SKUs:
|
HX-LB18F4S
|
|
Analytics:
|
Motion Detection
Tampering
Line Crossing
Intrusion Detection
|
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711ulaw
G.711alaw
G.722.1
G.726
MP2L2
PCM
MP3
|
|
Audio Input:
|
1x 3.5mm
|
|
Audio Output:
|
1x 3.5mm
|
|
Camera Style:
|
Bullet
|
|
Certifications:
|
CE
FCC
KC
RCM
UL Listed
BIS
CB
RoHS
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
ISAPI
SDK
|
|
Compression:
|
H.265
H.265 Plus
H.264
H.264 Plus
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
351.05
|
|

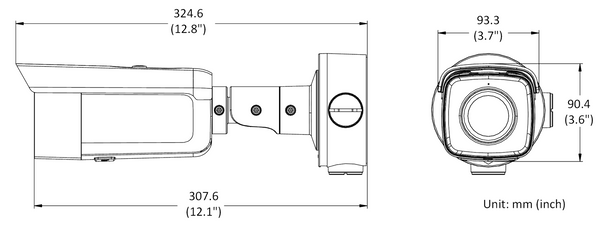

Dimensions:
|
324.6 x 93.3 x 90.4 mm (12.8 x 3.7 x 3.7 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Diagonal):
|
102
|
|
Field of View (Horizontal):
|
87
|
|
Field of View (Vertical):
|
47
|
|
Identify (ft):
|
32.81
|
|
Image Enhancements:
|
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Electronic Image Stabilization (EIS)
Highlight Compensation (HLC)
Defog
|
|
Image Settings:
|
Brigthness
Contrast
Saturation
Sharpness
Mirror
Privacy Mask
|
|
Languages:
|
English
Russian
Estonian
Bulgarian
Hungarian
Greek
German
Italian
Czech
Slovak
French
Polish
Dutch
Portuguese
Spanish
Romanian
Danish
Swedish
Norwegian
Finnish
Croatian
Slovenian
Serbian
Turkish
Korean
Traditional Chinese
Thai
Vietnamese
Japanese
Latvian
Lithuanian
Portuguese (Brazil)
Ukrainian
|
|
Lens Mount:
|
M16
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
Main Stream:
|
8MP
|
|
Max Power Consumption:
|
14 Watts
|
|
Max. FPS and Resolution:
|
20fps at 4K (3840 x 2160)
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.003 Lux at F1.6 AGC ON
|
|
Network Interface:
|
1x RJ-45 10M/100M self-adaptive Ethernet interface
|
|
Night Vision Range (ft):
|
295
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Observe (ft):
|
137.80
|
|
Power Supply:
|
12 VDC
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Hikvision AcuSense Series
Hikvision Performance Series
|
|
Protection Code:
|
IP67
|
|
Recognize (ft):
|
68.90
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Security:
|
Digest authentication
Password protection
IP address filtering
HTTPS encryption
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/3-1/100000s
|
|
Special Technologies:
|
Hikvision AcuSense
Hikvision DarkFighter
|
|
Specialized Camera Feature:
|
Deep-learning
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Sub Stream:
|
VGA
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
