Motorized Bi-Directional Swing Gate Turnstile

Brand:
Part Number: SWG-25
Write a Review
  • Motorized Bi-directional Swing Gate Turnstile SWG-25
  • Motorized Bi-directional Swing Gate Turnstile SWG-25
  • Motorized Bi-directional Swing Gate Turnstile SWG-28
  • Motorized Bi-directional Swing Gate Turnstile SWG-28
  • Motorized Bi-directional Swing Gate Turnstile SWG-30
  • Motorized Bi-directional Swing Gate Turnstile SWG-30

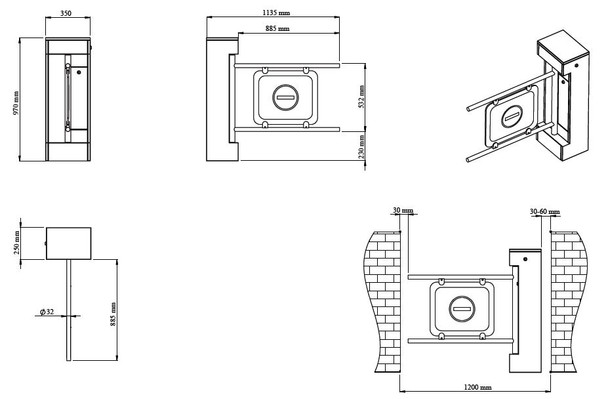

  • Motorized Bi-directional Swing Gate Turnstile SWG-25 Dimensions
  • Motorized Bi-Directional Swing Gate Turnstile
$2,005.71
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
  • Turnstile Type : Swing Gate
  • Direction : Bi-directional
  • Flow Rate : 30 Passage/Minutes
  • Protection Code : IP54
  • Environmental : Indoor
  • Access Control Type : Turnstile

Description

Motorized Bi-Directional Swing Gate Turnstile

Motorized Bi-directional Swing Gates are provides an alternative to regulate pedestrian traffic. Thanks to its compact design and 90 cm arm length which is compatible with international wheelchair standards, SWG-25-28-30 is an ideal solution to provide controlled passage for VIP and physically handicapped people.

Swing Gates are applicable in shopping malls, supermarkets, fitness/wellness centers with its aesthetic and user friendly design.

Specifications

Material

SWG-25-28: Main Body: 304 - Stainless Steel ( Ops. 316 ) Arm: Stainless Steel

SWG-30: Main Body: 304 - Stainless Steel ( Ops. 316 ) Arm: 10 mm tempered glass

Standard
Dimensions

SWG-25: 25 x 35 x 97 cm ( W x L x H )

SWG-28: 28 x 45 x 97 cm ( W x L x H )

SWG-30: 26 x 45 x 99 cm ( W x L x H )

Rotor Systems

With rotating control; arms are positioned at 90 degrees.

Rotation Control

The main movement mechanism is provided by 24V DC Motor.

Energy / Operating Voltage

110 / 220 - 240V AC 50/60 Hz (+/- %10) - 24V DC

Control Systems

All inputs are opto-coupler protected. Controlled by dry contact or grounding input
Compatiable with all access control systems that provide dry contact or grounding outputs.

Speed Control

Motor start and stop control is maintained by PWM microprocessor control system.

Operating Temperature

-20° C / + 50° C

Flow Rate

30 Passage / Minutes / Normally Standard

Operation

Bi-directional

IP Rating

IP 54

Have questions?

Call Our Experts

866-441-2288

Swing Gate Turnstile

If you have special needs you can customize your entrance solution by these optional accessories. Please contact our experts, describe your needs and get more information.

Remote Control

1 Unit, working with 23V type 12V battery.
33.920MHz working frequency.
( Legal ISM band for Turkey and Europe )

Separator

Spacebar of the central portion, optionally, glass, plexiglass, to close with dekota types of material properties are available.
Ability to shorten optional intermediate pipes.

Floor Mounting Plate

Ease of modular installation with anti-skid bottom platform.
Ease of installation in difficult ground conditions.
Front and rear ramp system for easy access.

Button Control Unit

Provides remote control in security huts, security rooms.
“Entry - Exit - Emergency” modes.
BT-1 and BT-2 type options.

Pass / Stop Available Signals

“Pass”, “Stop” signs optionally made to the middle plate within the arm.

Disabled / Emergency Available Signals

“Disabled”, “Emergency” signs optionally made to the middle plate within the arm.

View AllClose

Additional Information

Access Control Type:
Turnstile
Arm/Wing Length (inch):
33.46
Direction:
Bi-directional
Environmental:
Indoor
Flow Rate:
30 Passage/Minutes
Operating Humidity:
0% to 95% RH (non-condensing)
Operating Temperature:
-20 °C to 50 °C (-4 °F to 122 °F)
Passage Lane:
Single
Passageway Width (inch):
35.43
Power Consumption:
30 Watts
Protection Code:
IP54
Serial Interface:
Turnstile Type:
Swing Gate
View AllClose
