Description

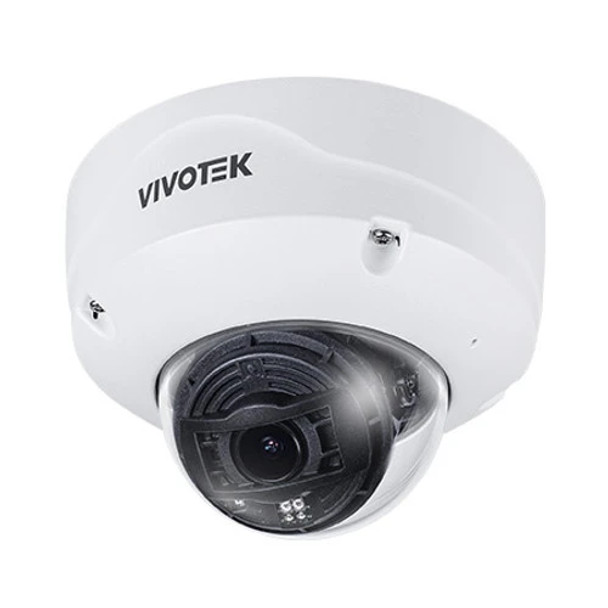

Vivotek FD9365-EHTV-V2 2MP IR Extreme Weather Outdoor Dome IP Security Camera
VIVOTEK FD9365-EHTV-v2 is a newly revamped outdoor fixed dome network camera that delivers 1920x1080 resolution at up to 60 fps. This well-designed, outdoor-ready camera features a built-in microphone, I/O functionality, the most up to date VIVOTEK SNV II, WDR Pro II and Smart IR III technology to deliver clear image quality in both low light and high contrast environments. It also offers a variety of built-in cybersecurity capabilities and AI-powered video analytics with IP66, IP67, IP6K9K, IK10+, NEMA 4X and wide temperature range from -40°C to 60°C without heaters making it ideal for wide-ranging outdoor surveillance scenarios.
Key Features
- 60 fps @ 1920x1080
- H.265 Compression Technology with Smart Stream III
- Installation-friendly Design
- Weather-proof IP66, IP67, IP6K9K and Vandal-proof IK10+, NEMA 4X-rated Protection
- SNV II (Supreme Night Visibility) for Low Light Conditions
- WDR Pro II for Unparalleled Visibility in Extremely Bright and Dark Environments
- Built-in IR Illuminators up to 50M with Smart IR III
- Signed Firmware and Secure Boot
- AI-powered Smart Motion Detection and Smart VCA
- Cyber Protection via Trend Micro IoT Security
Replacement of:
FD9365-EHTV-A
Downloads
Datasheet
Vivotek-FD9365-EHTV-V2-Datasheet-A1
Quick Start Guide
Vivotek-FD9365-EHTV-V2-Quick-Start-Guide-A1
User Manual
Vivotek-FD9365-EHTV-V2-User-Manual-A1
Firmware
Vivotek-FD9365-EHTV-V2-Firmware-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Smart Motion Detection
|
|
Aperture:
|
F1.3
F2.2
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.726
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Dome
|
|
Certifications:
|
CE-EMC
FCC
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
315.1
139.3
|
|
Digital Input:
|
2
|
|
Digital Output:
|
2
|
|
Dimensions:
|
174 x 123 mm (6.8 x 4.8 in)
|
|
Durability:
|
Weatherproof
Waterproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
120
46
|
|
IR Corrected:
|
IR Corrected
|
|
IR LED Quantity:
|
4
|
|
Identify (ft):
|
31.4
13.6
|
|
Iris:
|
P-iris
|
|
LED Indicator:
|
Power LED
Status LED
|
|
Lens Size:
|
4~9mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
Varifocal (Manual Zoom) Lens
|
|
Max. FPS and Resolution:
|
60fps at 1920 x 1080
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.015 Lux
|
|
Network Interface:
|
1x RJ-45
|
|
Night Vision Range (ft):
|
164
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
|
|
Observe (ft):
|
55.7
126
|
|
Power Supply:
|
12 VDC
24 VAC
PoE+ (IEEE802.3at Class 4)
|
|
Processor (CPU):
|
Multimedia SoC (System-on-Chip)
|
|
Product Series:
|
Vivotek Supreme Series
|
|
Protection Code:
|
IP66
IP67
IP6K9K
IK10 Plus
NEMA 4X
|
|
RAM:
|
2GB
|
|
Recognize (ft):
|
24.63
27.7
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
2MP
|
|
S/N Ratio:
|
58 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Special Technologies:
|
Trend Micro IoT Security
Vivotek SNV (Supreme Night Visibility)
Vivotek SNV II
Vivotek Smart Stream III
|
|
Specialized Camera Feature:
|
Extreme Weather Temperatures
|
|
Storage Humidity:
|
0% to 98%
|
|
Technology:
|
Network (IP)
|
|
USB Interface:
|
1x Micro USB
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
WDR 140dB
|
