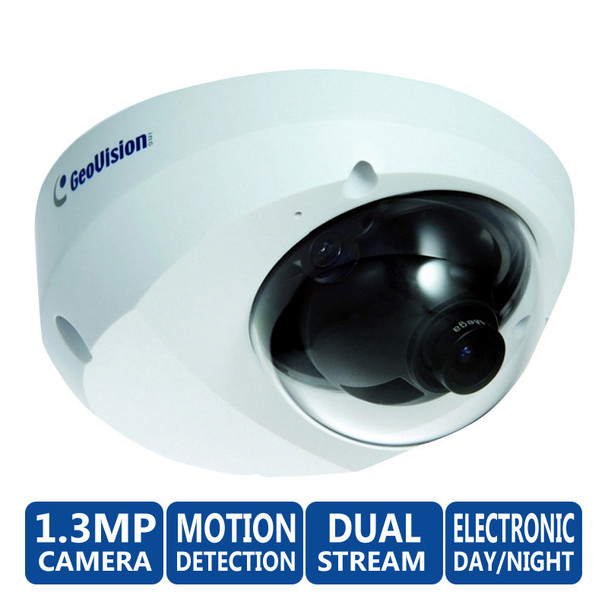

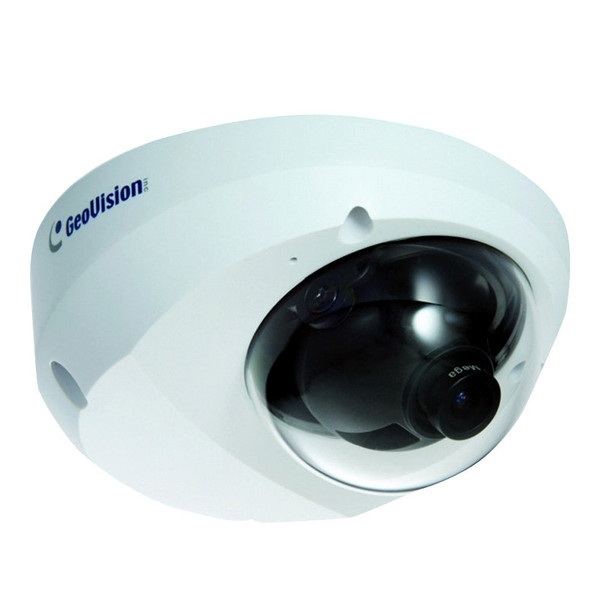

GeoVision GV-MFD120 1.3MP Indoor Mini Dome Security Camera - 84-MD120-100U
The GeoVision GV-MFD120 (84-MD120-100U) 1.3MP Indoor Mini Dome Security Camera is sure to keep an eye on your valuable assets. This amazing IP mini dome camera offers superb imaging and audio capture so you can monitor what is happening in your property. Its Wide Dynamic Range ensures the details in shadows and highlights are clearly seen on video, while its privacy mask allows you to block areas from the camera's field of view. It transmits the video and audio data through your existing network or the Internet so you can check up on your valuable assets from your computer or 3G phone. The camera works well with multi-vendor systems and it even supports iPhone, iPad, Android, and 3GPP. And with its compact size, it provides discreet surveillance whether it is placed on the wall or on the ceiling. Other features of the GeoVision GV-MFD120 include H.264 and MJPEG compression, built-in micro SD card slot, and active tampering alarm.
Keep your valuable assets secure with the GeoVision GV-MFD120 (84-MD120-100U) 1.Indoor Mini Dome Security Camera.
Key Features:
- Motion detection: detects any movement or change in an object's position
- 1.3MP low lux CMOS sensor: delivers high-quality, low-noise images even in low lux conditions
- Built-in microphone: captures sound within range
- H.264 and MJPEG compression: reduces data storage requirements and bandwidth usage
- Built-in micro SD card slot: offers onboard storage using a micro SD card
- Tampering alarm: triggers an alarm upon detection of unauthorized tampering, focus change, or camera shift
& GeoVision GV-MFD120 (84-MD120-100U) 1.Indoor Mini Dome Security Camera Specifications&
- Image Sensor: 1/3" progressive scan CMOS
- Picture Elements: 1280 (H) x 1024 (V)
- Minimum Illumination: Color-0.05 Lux, B/W-0.03 Lux
- Shutter Speed: Automatic, Manual (1/5 ~ 1/8000 sec.)
- White Balance: Automatic, Manual (2800K ~ 8500K)
- Gain Control: Automatic
- S/N Ratio: 50 dB
- BLC: Yes
- Megapixel: Yes
- Day/Night: Yes (electronic)
- Iris: Fixed
- Focal Length: 4.05 mm
- Maximum Aperture: F/1.5
- Mount: M12, Pitch 0.5 mm
- Image Format: 1/3"
- Video Compression: H.264, MJPEG
- Video Streaming: Dual streams from H.264 and MJPEG
- Frame Rate: 30 fps at 1280 x 1024 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
- Image Setting: Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation , WDR Defog
- Audio Compression: G.711
- Main Stream: & 4:3-1280 x 960, 640 x 480, 320 x 240 16:9-1280 x 720, 640 x 360, 448 x 252 5:4-1280 x 1024, 640 x 512, 320 x 256 Sub Stream 4:3-640 x 480, 320 x 240
- Sub Stream: 16:9-640 x 360, 448 x 252 5:4-640 x 512, 320 x 256
- Interface: 10/100 Ethernet
- Ethernet Protocol: HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF
- Temperature Detector: Yes
- Pan: -45° ~45°
- Tilt: 0° ~ 90°
- Power: 2-pin terminal block,
- PoE Ethernet: Ethernet (10/100 Base-T), RJ-45
- Audio: Built-in microphone
- Local Storage: Micro SD memory card slot (SDHC / SDXC for Class 6 card or above)
- Environment Temperature: 0 °C ~ 50 °C (32 °F ~ 122 °F)
- Humidity: 10% to 90% (no condensation)
- Power Source: 12V DC / PoE (IEEE802.3af)
- Maximum Power Consumption: 4.5 W
- Camera Body: ø 106 x 55.6 mm (4.2 x 2.2”)
- Cable Length: 1 m (3.28ft.)
- Cable Diameter: ø 8 mm (0.31”)
- Maximum Connector Diameter: ø 28.5 mm (1.12”)
- Weight: 275 g (0.61 lb)
- Regulatory: CE, FCC, C-Tick, RoHS compliant
- PoE Standard: IEEE 802.3af Power over Ethernet / PSE
- PoE Power Supply Type: End-Span
- PoE Power Output: Per Port 48V DC, 350mA. Max. 15.4 watts
- Installation Management: Web-based configuration
- Maintenance: Firmware upgrade through Web Browser or Utility
- Access from Web Browser: Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O Control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ
- Language: Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
- Network Storage: GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
- Smart Device Access: GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch, & GV-Eye HD for iPad
- Live Viewing: IE, mobile phone
- CMS Server support: GV-Control Center, GV-Center V2, GV-VSM
